EPIC of Wellhead Platform LAM-C Project

  • CLIENTDragon Oil Ltd.
  • LOCATION Turkmenistan
  • STATUS Completed Projects
  • SCOPE OF WORKS

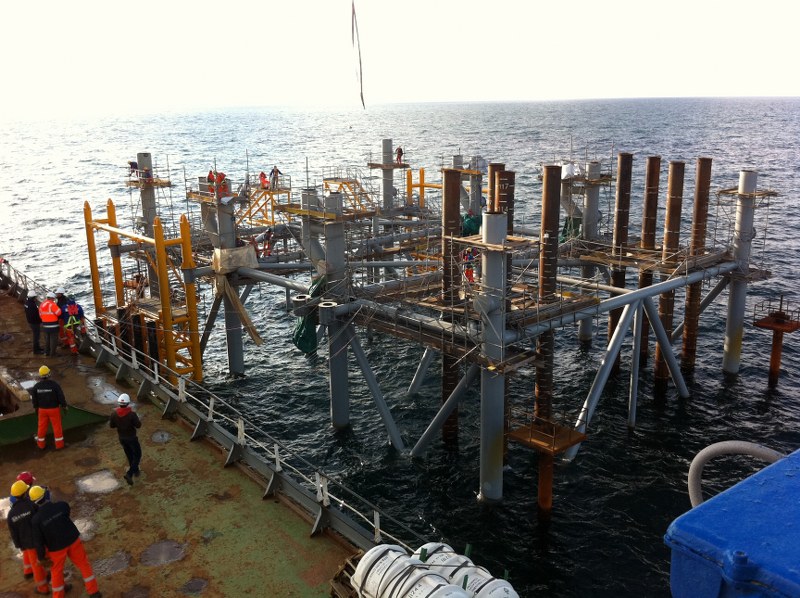

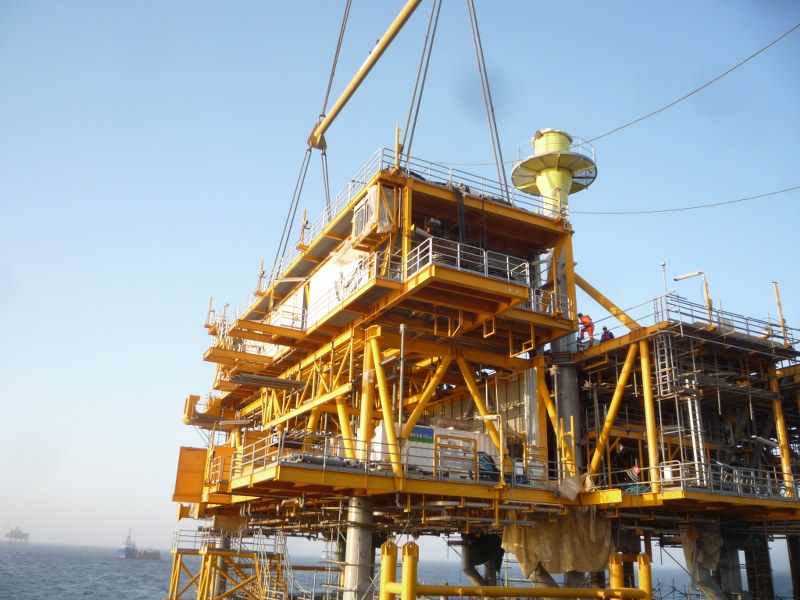

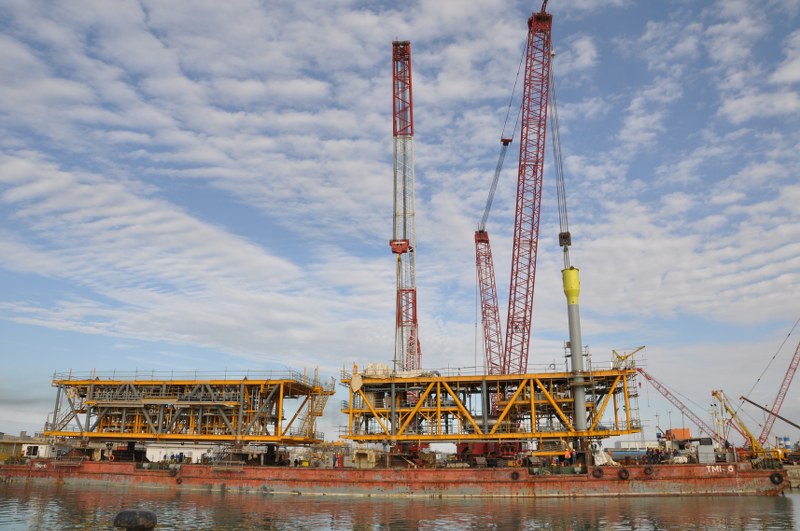

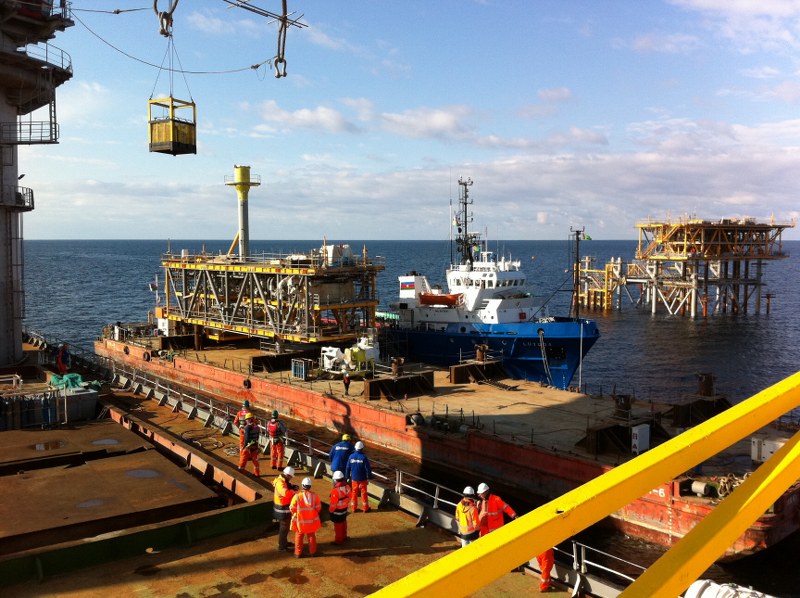

  • Engineering, Procurement, Fabrication, Integration, Load Out, Piling, Offshore Installation and Commissioning of Wellhead platform. Platform consists of Cargo Deck, Main Deck, Intermediate Deck and Drain Deck.

PROJECT DETAILS

Main Products

Piles

1.067 mm dia- 25.4 mm WT - 335 tons

Grouting

136 tons

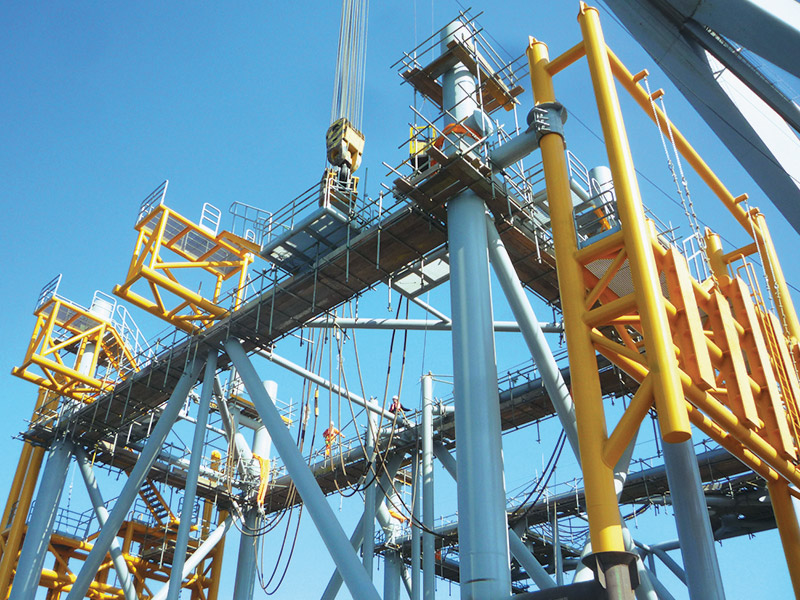

Jacket

2 nos of 4 legged Jackets - 565 tons

Appurtenances (Anodes, Boatlanding,Walkways etc)

2 nos of Boat Landing, 142 nos 394 kg each Anodes - 184 tons

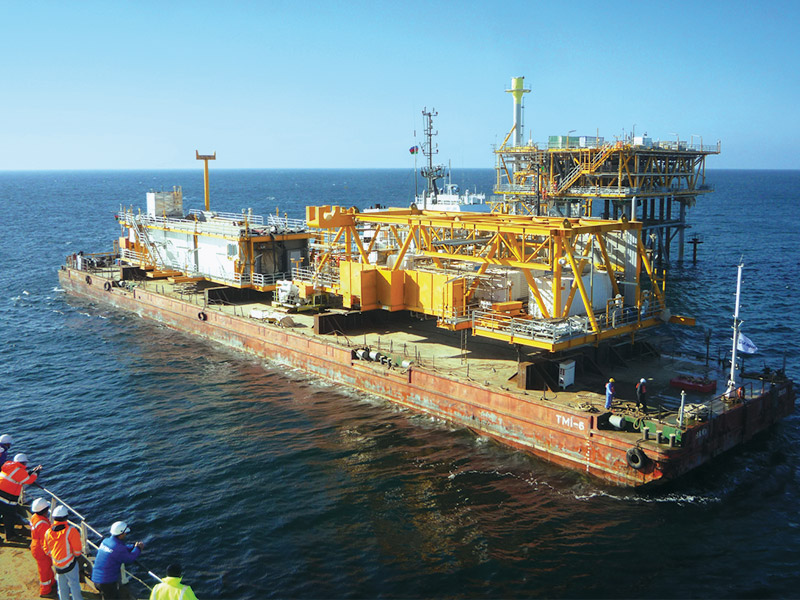

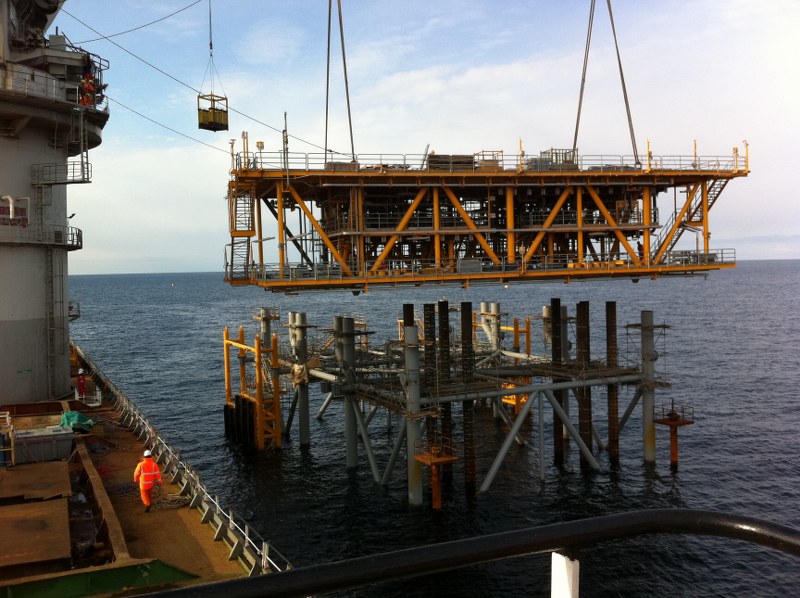

Topside

703 tons

Piping

183 tons

Mechanical (Equipment) Erection

233 tons

Electrical Installation

51 tons

Instrument Installation

27 tons

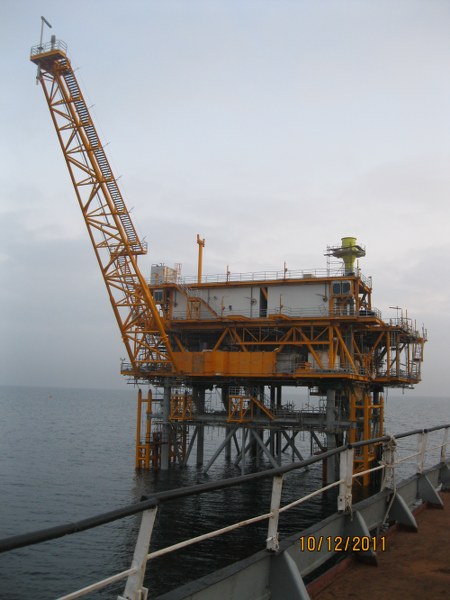

Deck Elevations and Sizes

+ 22.500 Cargo Deck - 8.93 x 31.00 m



+ 18.500 Main Deck - 34.25 x 33.50 m



+ 14.500 Intermediate Deck - 21.50 x 29.00 m



+ 11.500 Drain Deck - 32.25 x 33.50 m

Total tonnage of platform

2.417 tons
