İLK CONSTRUCTION// Oil & Gas //Downstream

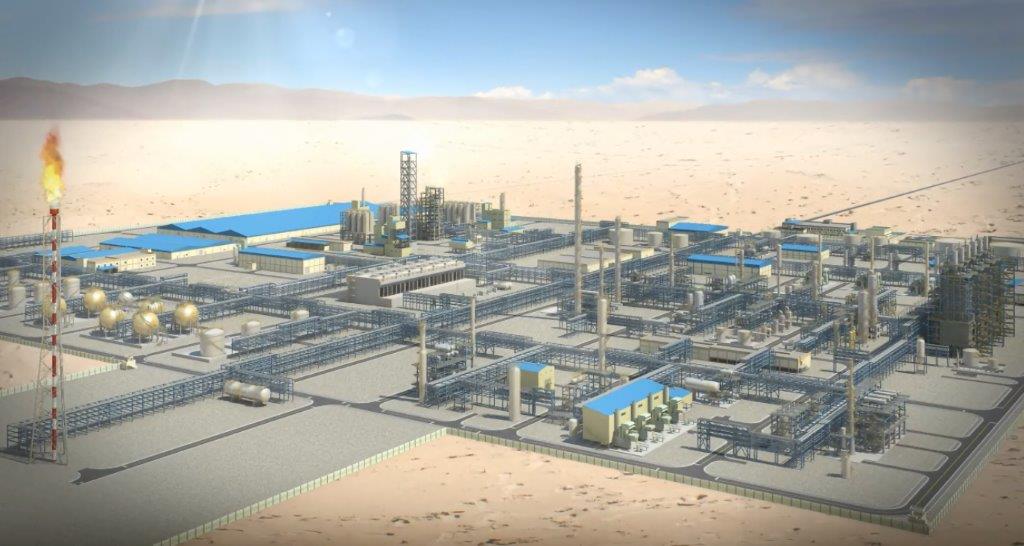

TACE - Turkmenistan Ethane Cracker and Polyprophylene and Polyethylene Plant

  • CLIENTHyundai Engineering Co., Ltd.
  • LOCATION Turkmenistan
  • STATUS Completed Projects
  • SCOPE OF WORKS
  • Civil, Architectural, Steel, Piping, HVAC, Blasting&Painting, Firefighting, Insulation, NDE and Temporary Works of Ethane Cracker and Polyprophylene and Polyethylene Plant
See All Images of the Project >>

PROJECT DETAILS

Main Products

  • Site Preparation works of Main and Temporary Area.

  • Civil works of Temporary Facilities

  • Temporary Reverse Osmosis System and Pipeline

  • Civil and Architectural Works

  • Internal roads of Plant

  • EPC of Reverse Osmosis System

  • General Contracting Works of Poly Propylene Package

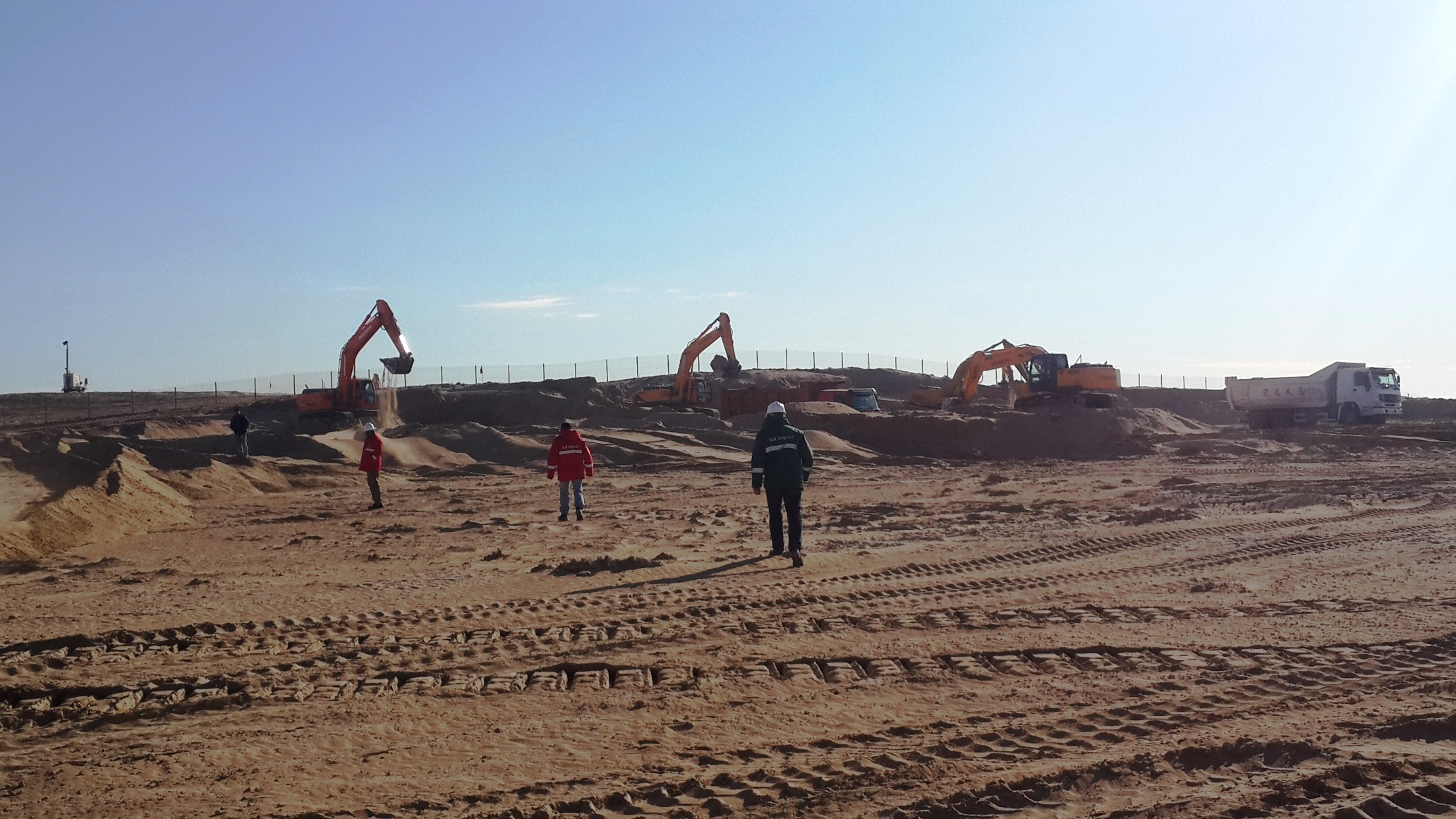

Site Preparation 1&2 Packages

Disposal

1,886,403 m3

Soil Cutting

3,898,926 m3

Soil Excavation

984,259 m3

Soil Filling and Compaction with Excavated Soil

2,001,493 m3

Soil Filling with Cutting Soils

995,289 m3

Top-soil Stripping and clearing

436,845 m3



Civil 1&2 Architectural 1&2 Packages



Excavation

647,150 m3

Backfill

168106 m3

Concrete

73,785 m3

Formwork

196,302 m2

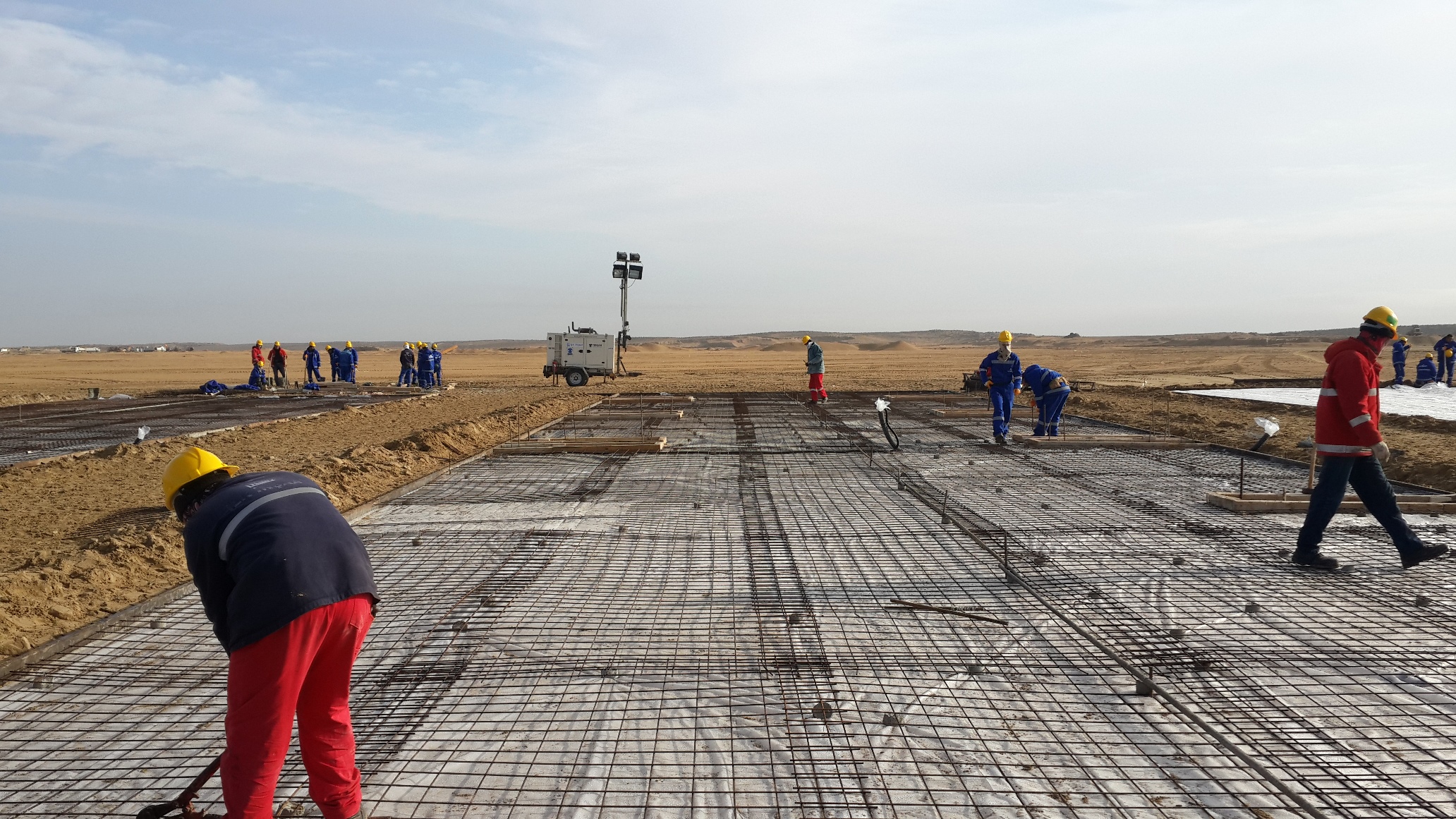

Re-Bar

9,482 ton

Structural Steel

175 ton

Paving

15,443 m2



Temporary Site Facility Package



Earthwork

224.520 m3

Concrete

19.358 m3

Screed

82.007 m2

Gravel Paving

100.400 m2

Asphalt Paving

26.495 m2

Concrete Paving

4.215 m2

Fence

6.490 m





Reverse Osmosis Package EPC with O&M Responsibility



R.O capacity

50 ton/hr

Treated Water reservoir

1.500 m3

TDS

(below) 250 ppm

Operation and Maintenance

3 years





Painting Package



Painting works of UTOS, HDPE, Polymer Warehouse piping and tank pank plates.

Total Painting Area

121,509 m2





Plant Roads Package



Asphalt road with shoulder

95,958.0 m2

Concrete type road without shoulder

24,133.0 m2





Polypropylene Package General Contracting Works

Civil & Architectural Works



Excavation&Backfill

40.234 m3

Concrete

8.039 m3

Fireproofing

2.300 m2

Formwork

21.788 m2

Re-Bar

728 ton

Structural Steel

2.329 tons (Including Grating, Handrail etc.)



Other Packages

Structural Steel Package



Steel

4.422 tons

Piping Works



Piping

64.333 D-I

UG Piping

4.956 D-I

Firefighting Works



NDT Works



HVAC Works



Mechanical Erection Works

902 ton

Insulation Works

1.006 m2
