Maghtumguly Collector Riser Platform Project

  • CLIENTPetronas Carigali (Turkmenistan)Sdn. Bhd, MMHE – Technip J.V.
  • LOCATION Turkmenistan / Kiyanly / Turkmenbashi
  • STATUS Completed Projects
  • SCOPE OF WORKS
  • Procurement, fabrication, Integration of Collector Riser Platform.

PROJECT DETAILS

Main Products

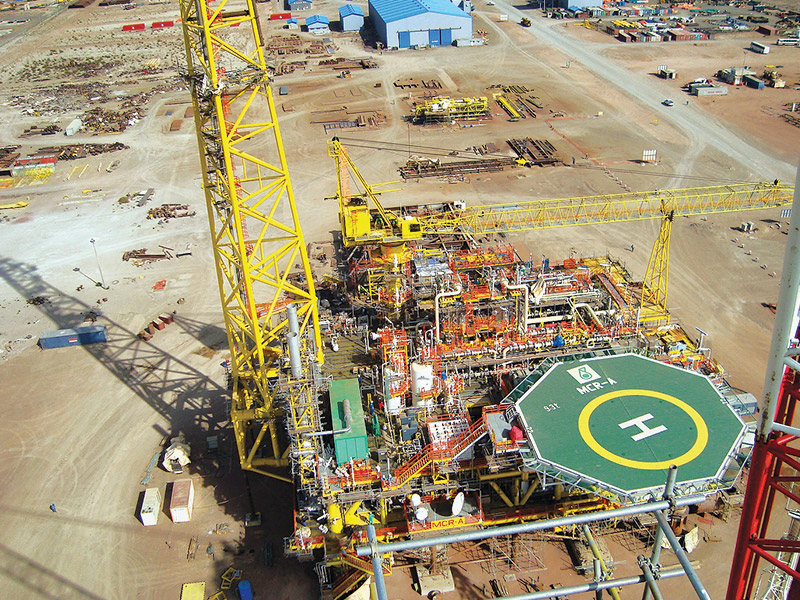

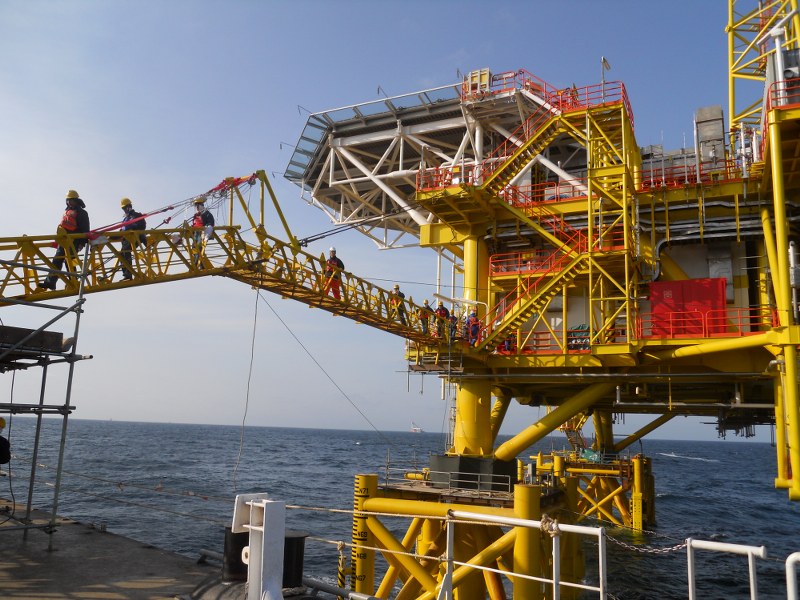

  • MCR-A is a collector riser platform which consists of GBS (Gravity Based Structure) and Topside. GBS is a gravity base structural consists of Pontoons, Columns, Skirts and Nodes complete with attachment of anodes. Topside is the main structure consist of Lower and Upper deck with a Sub-Cellar Sea deck, a Helideck, a Flare-boom and a Bridge to MDP-A.
  • The topside consists of two primary levels (i.e. upper deck at TOS EL + 21.100 and lower deck at TOS EL + 13.300 with respect to Caspian datum) the topside legs are spaced at 42 m x 42 m center to center.
  • The estimated weight of the topside is about 6 000 tons. The substructure (Jacket) is 4 legged fixed GBS foundation structure with 54 m x 54 m wide with section skirt arrangement.
  • The estimated weight of the GBS is about 8.000 tons.
  • Topside platform is blow-down type. MCR-A Topside to be installed on top of GBS in Caspian Sea.
  • The platform constructed to fulfill Block 1 Field Development: Gas Full Field Development Phase 1A (MDP-A and MCR-A) to achieve gas sales of 250 MMSCFD by end of March 2010. The development for Block 1 in Caspian Sea is located between 30 to 100 km off shore Turkmenistan and in 30 to 100 m water depth.

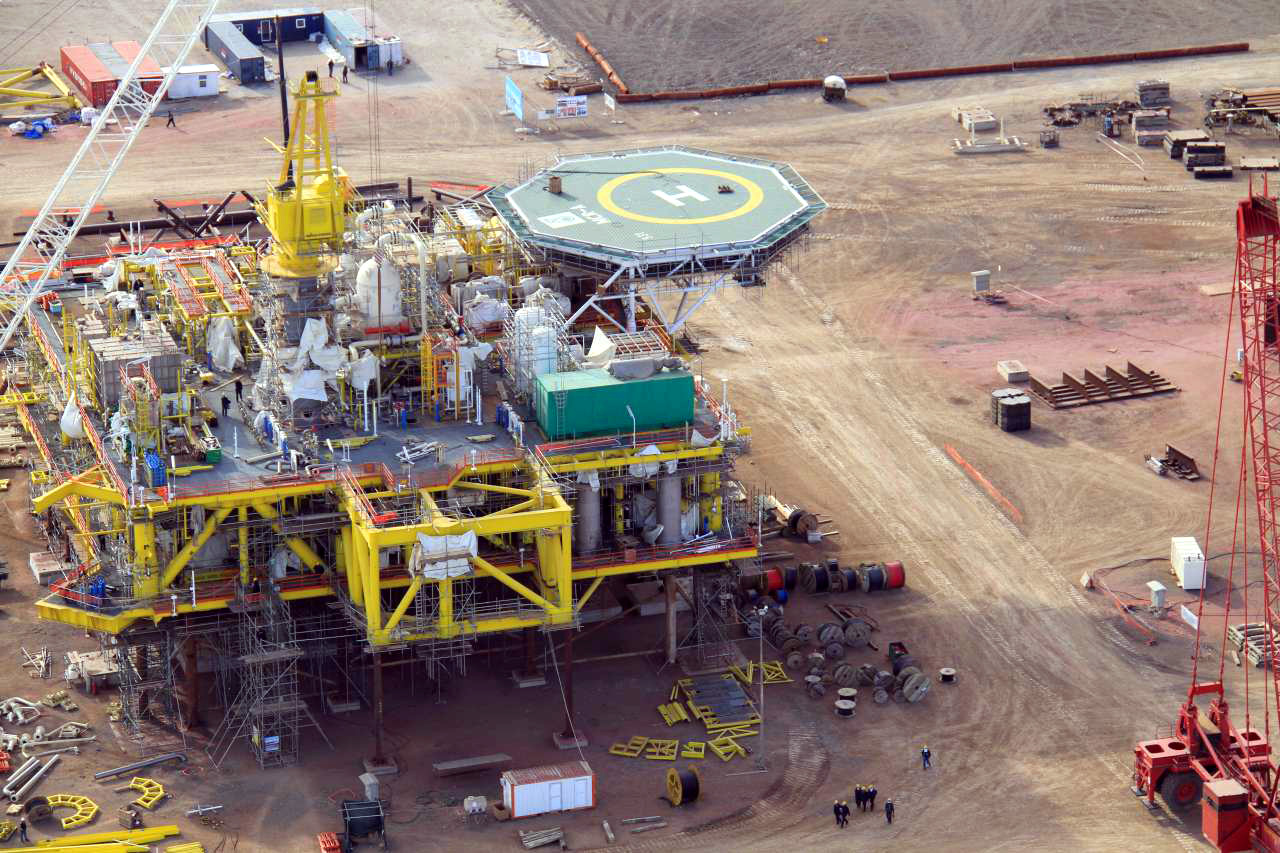

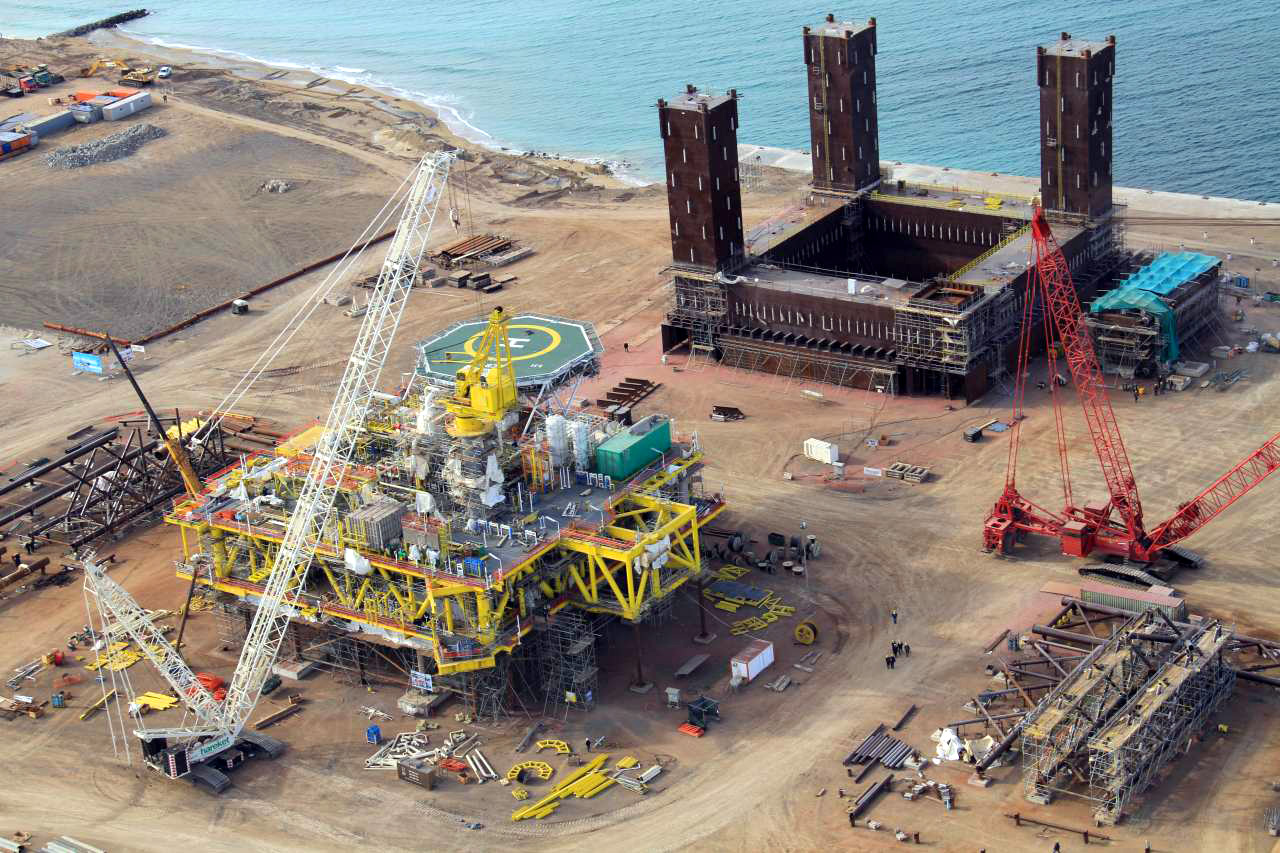

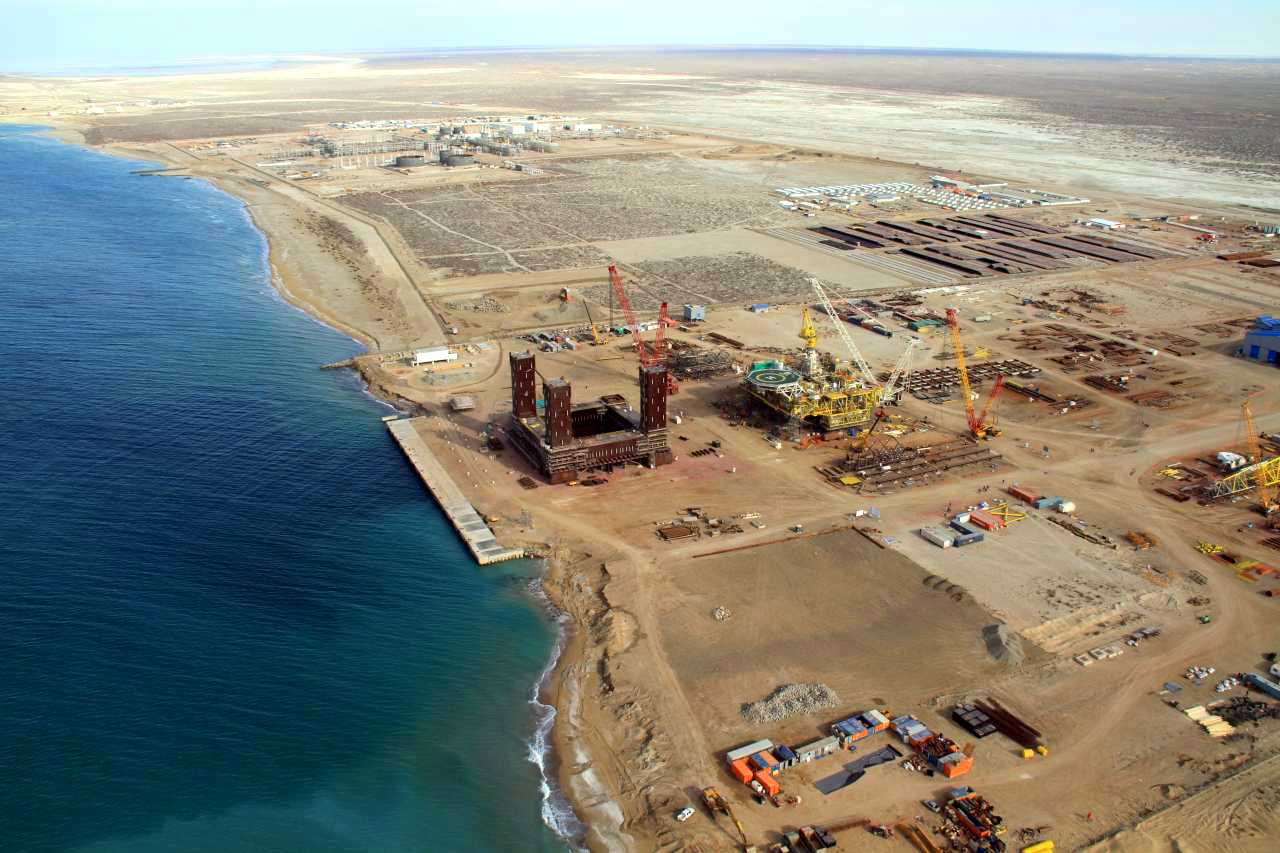

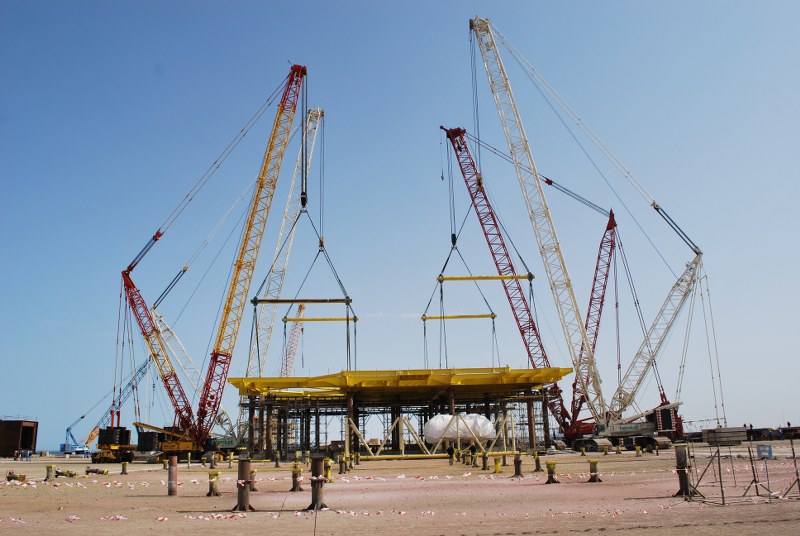

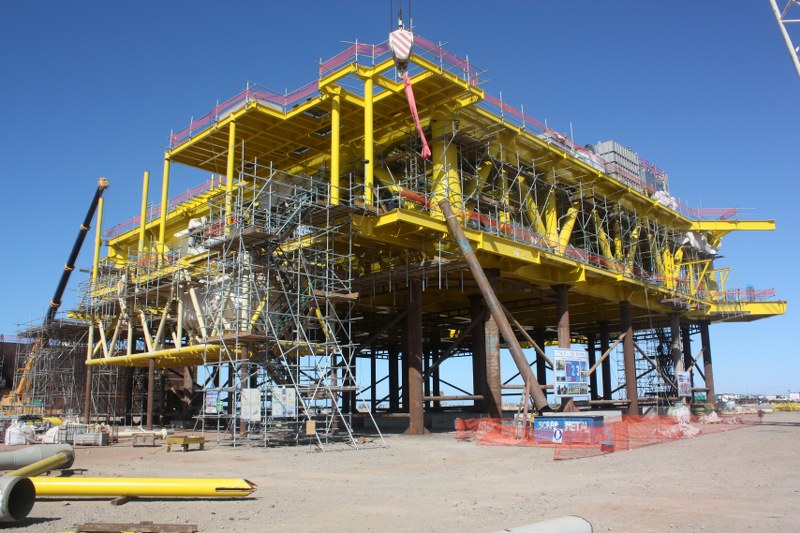

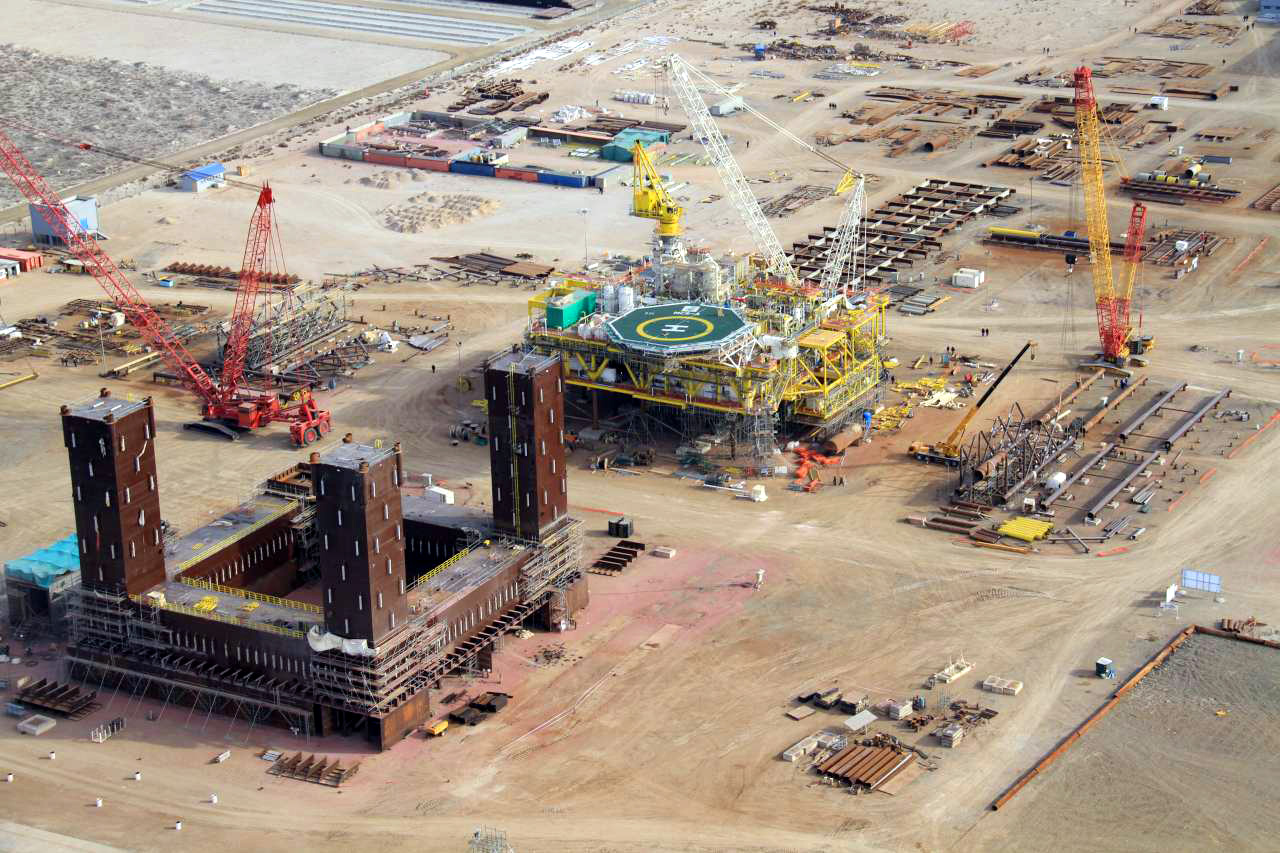

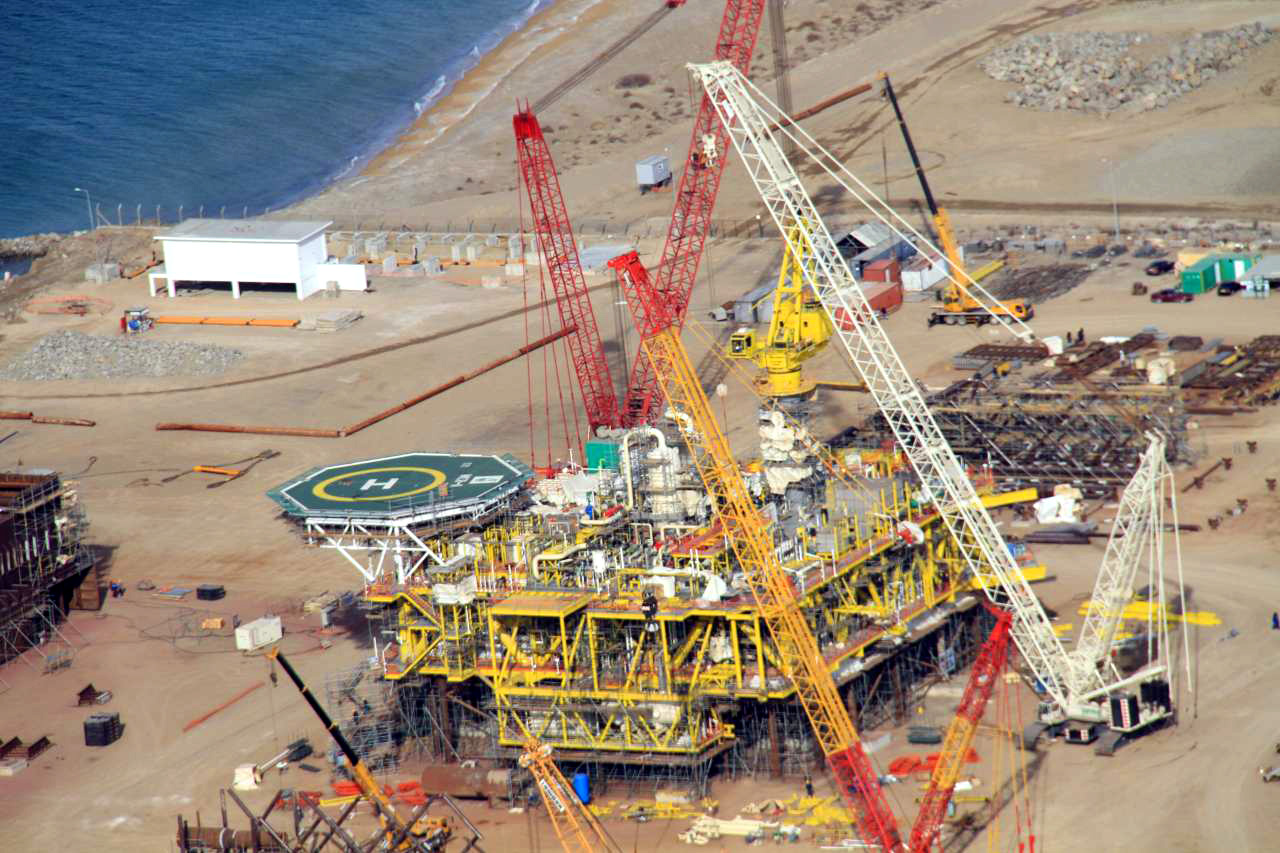

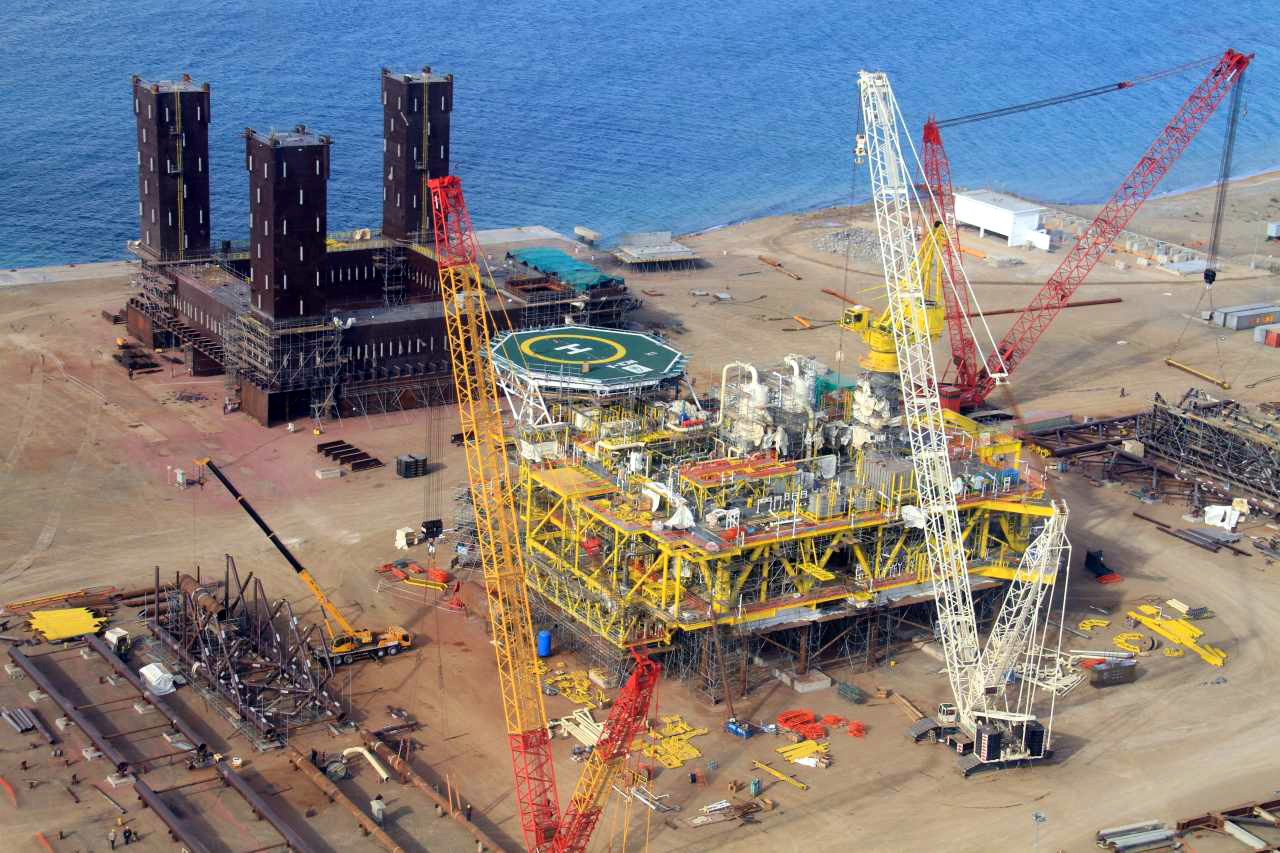

  • The Topside and GBS were partially pre-fabricated and assembled at MMHE Pasir Gudang Yard and the complete integration works were executed at MMHE Fabrication Yard, in Kiyanly, Turkmenistan.
