EPCC of Garagol Deniz West Offshore Platform Project

  • CLIENTPetronas Carigali (Turkmenistan) Sdn. Bhd.
  • LOCATION Turkmenistan
  • STATUS Completed Projects
  • SCOPE OF WORKS
  • EPCC of 10.000 bpd oil and 35 mmscfd gas production capacity offshore fixed platform which will be located in Caspian Sea 35 m water depth.

PROJECT DETAILS

Main Products

Piles

Diameter: 2.000 mm – thickness: 30-50 mm WT – 1.864 tons

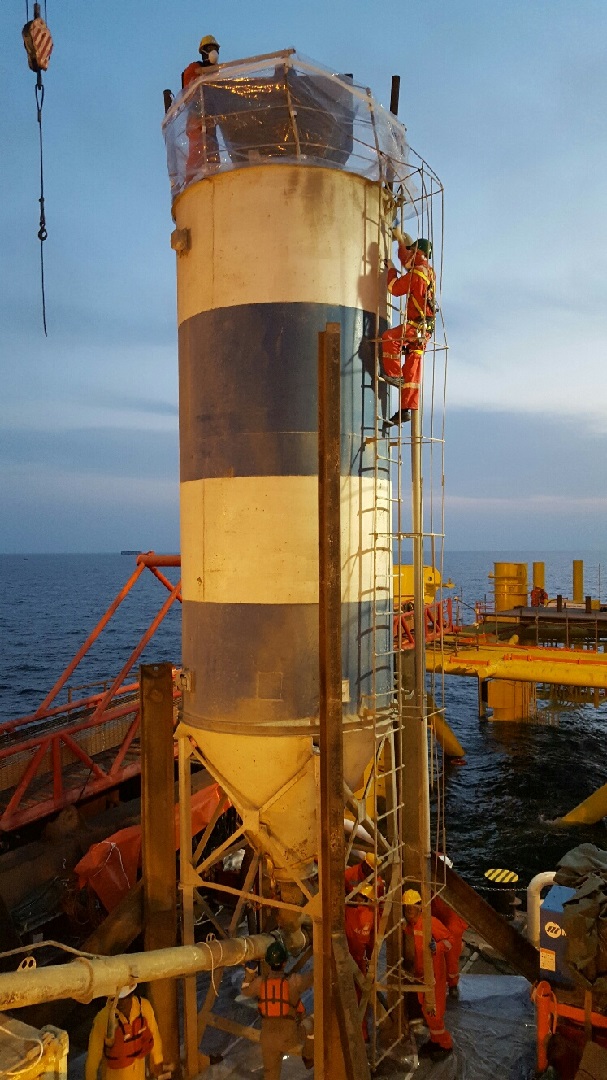

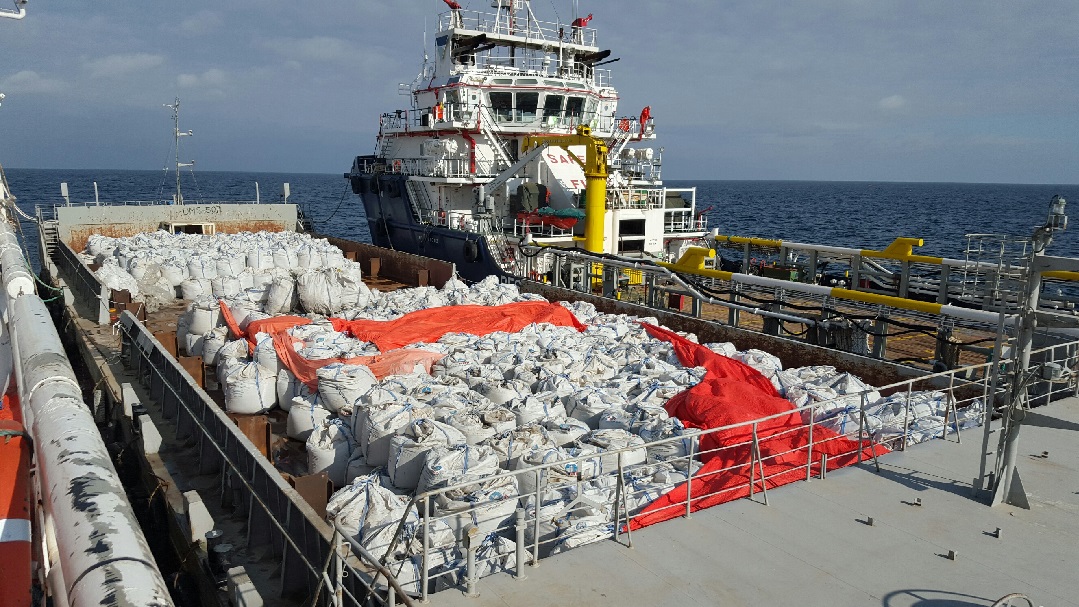

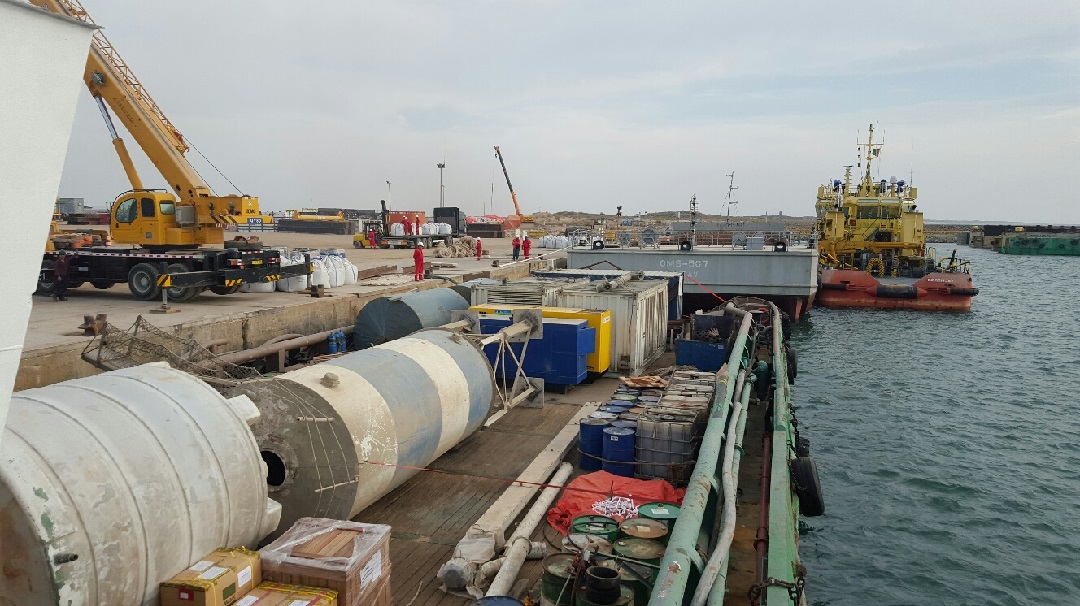

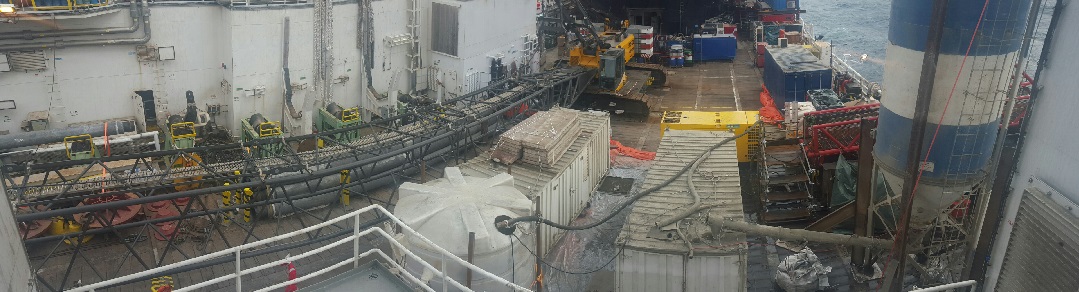

Grouting

82.5 tons

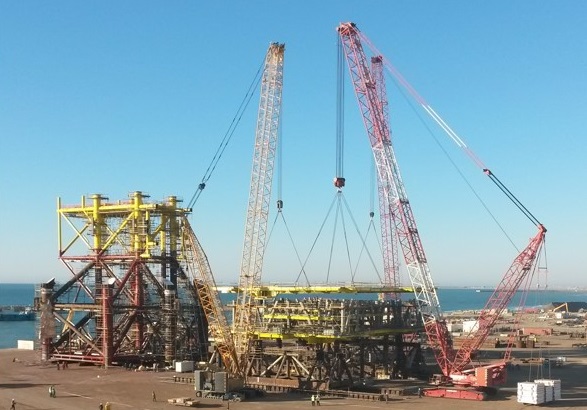

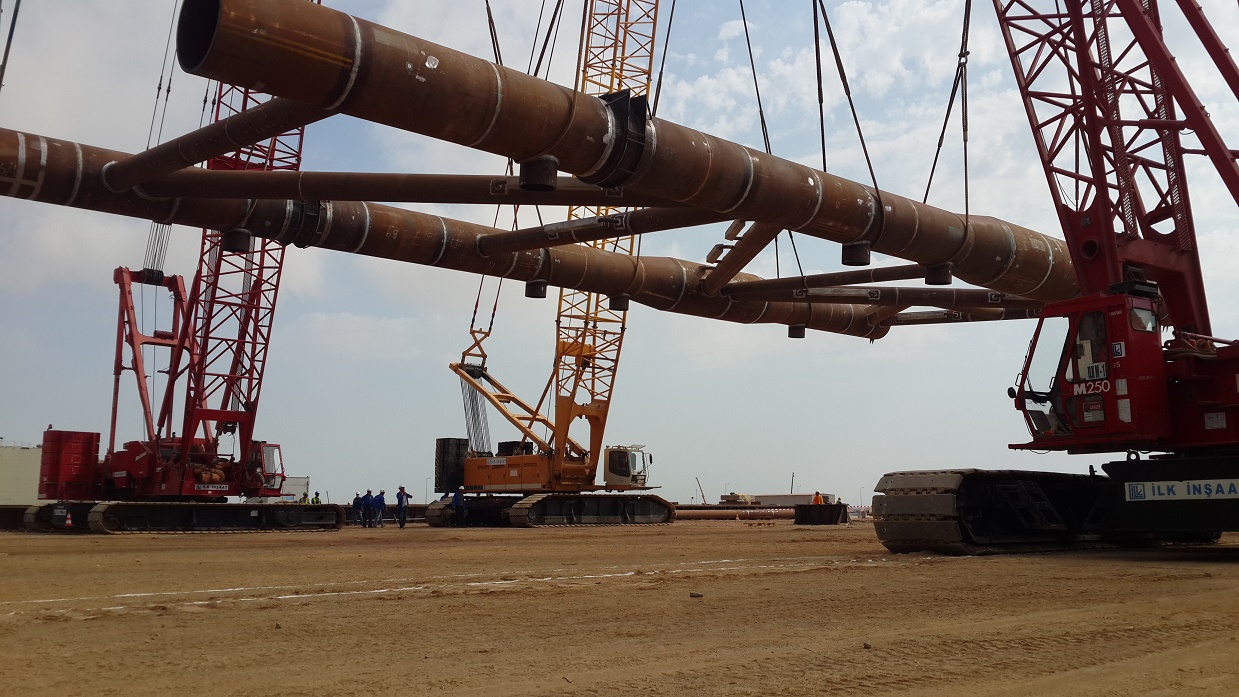

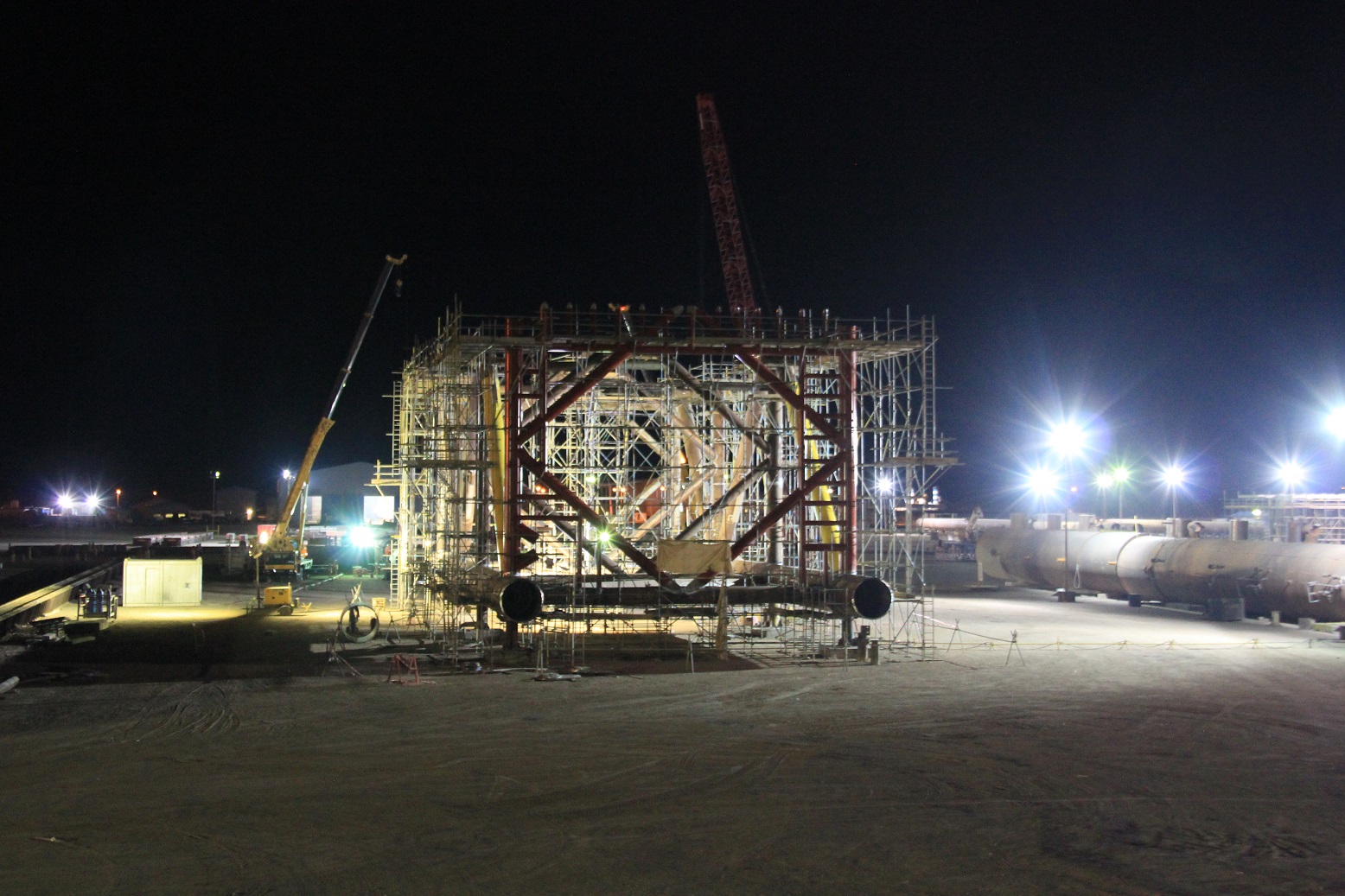

Jacket

1 nos 4 legged jacket with 6 skirt leg (total loadout 2.536 tons)

Appurtenances (Anodes, Boatlanding, Walkways etc.)

1 nos of Boat Landing – 80 tons, 230 nos Anodes – 94 tons

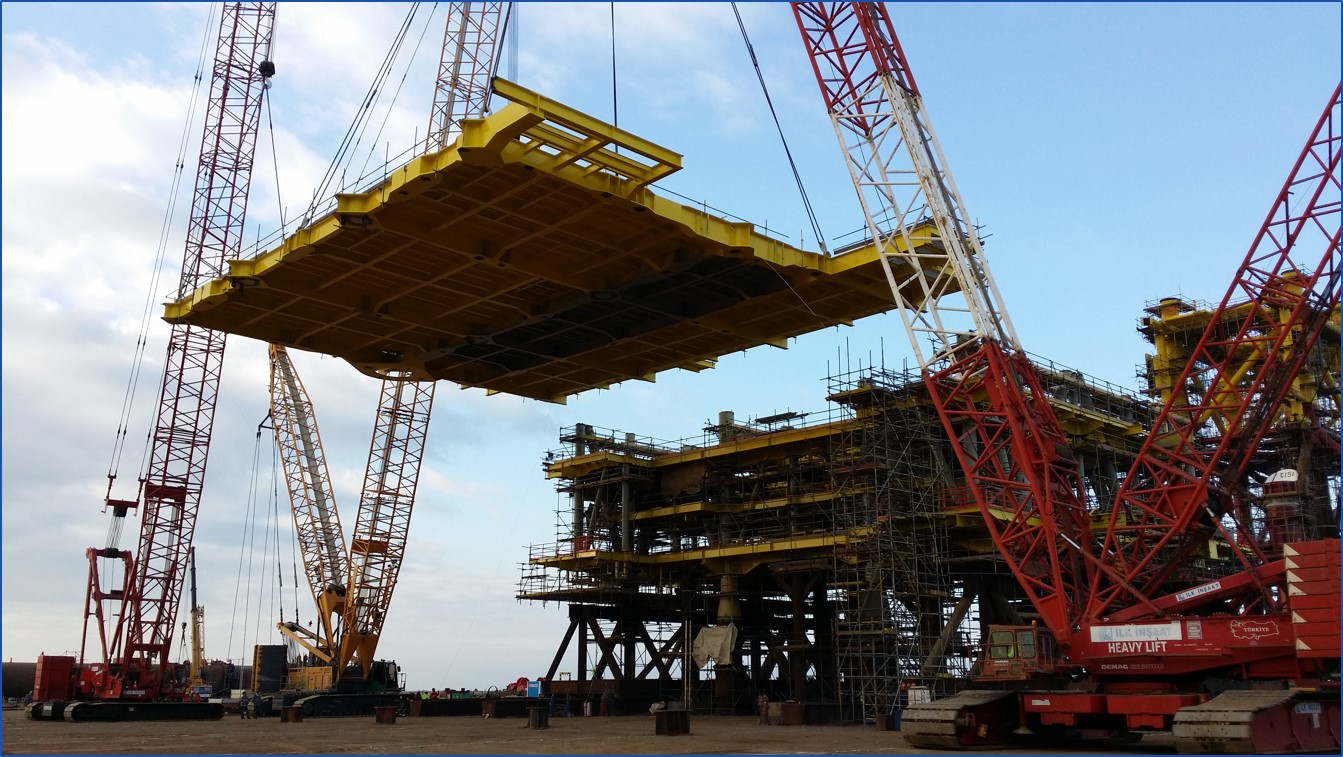

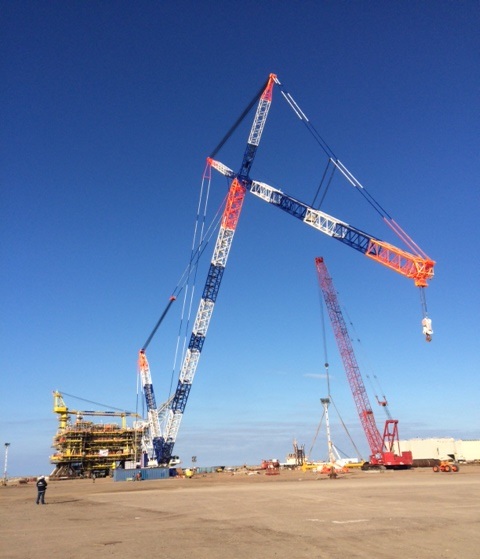

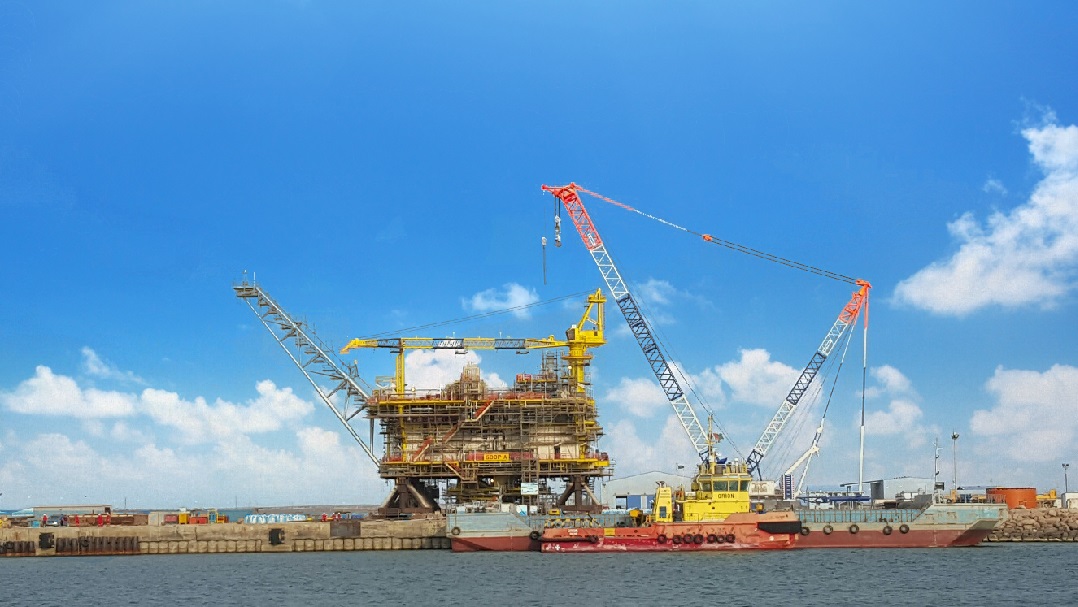

Topside

Loadout weight= 3939 tons, Operating weight= 5.994 tons

Piping

28.182 dia-inch, 3.136 spool

Mechanical (Equipment) Erection

25 nos of mechanical equipment

Electrical Installation

850 m cable ladder/tray, 65 km cable, 2.450 glanding, 7.600 termination and other electrical equipment & field electrical devices.

Instrument Installation

900 m cable ladder/tray, 27 km cable, 2.650 glanding, 21.750 termination, 505 loop test and other instrument equipment & instrument devices.

Deck Elevations and Sizes

Sub-lower Deck :17.00 x 23.00 m El: + 9.000



Lower Deck :27.00 x 44.20 m El: + 14.000



Mezzanine Deck : 14.00 x 27.00 m El: + 17.800



MEG Access Deck : 25.10 x 40.00 m El: + 20.800



Upper Deck : 34.68 x 38.70 m El: + 24.800

Total tonnage of platform

11.076 tons (operating)
