EPIC For Three New Wellhead Towers & Associated Pipelines for Water Injection

  • CLIENTDragon Oil Ltd.
  • LOCATION Turkmenistan
  • STATUS Project in Progress
  • SCOPE OF WORKS
  • Three New Wellhead Towers & Associated Pipelines for Water Injection

PROJECT DETAILS

Main Products

Engineering, Procurement, Installation and Commissioning of Three Water Injection Wellhead Towers in LAM Oilfield, Three offshore pipeline connecting Water Injection Platforms to LAM-28, Deck Extension & Strengthening works of LAM-28.

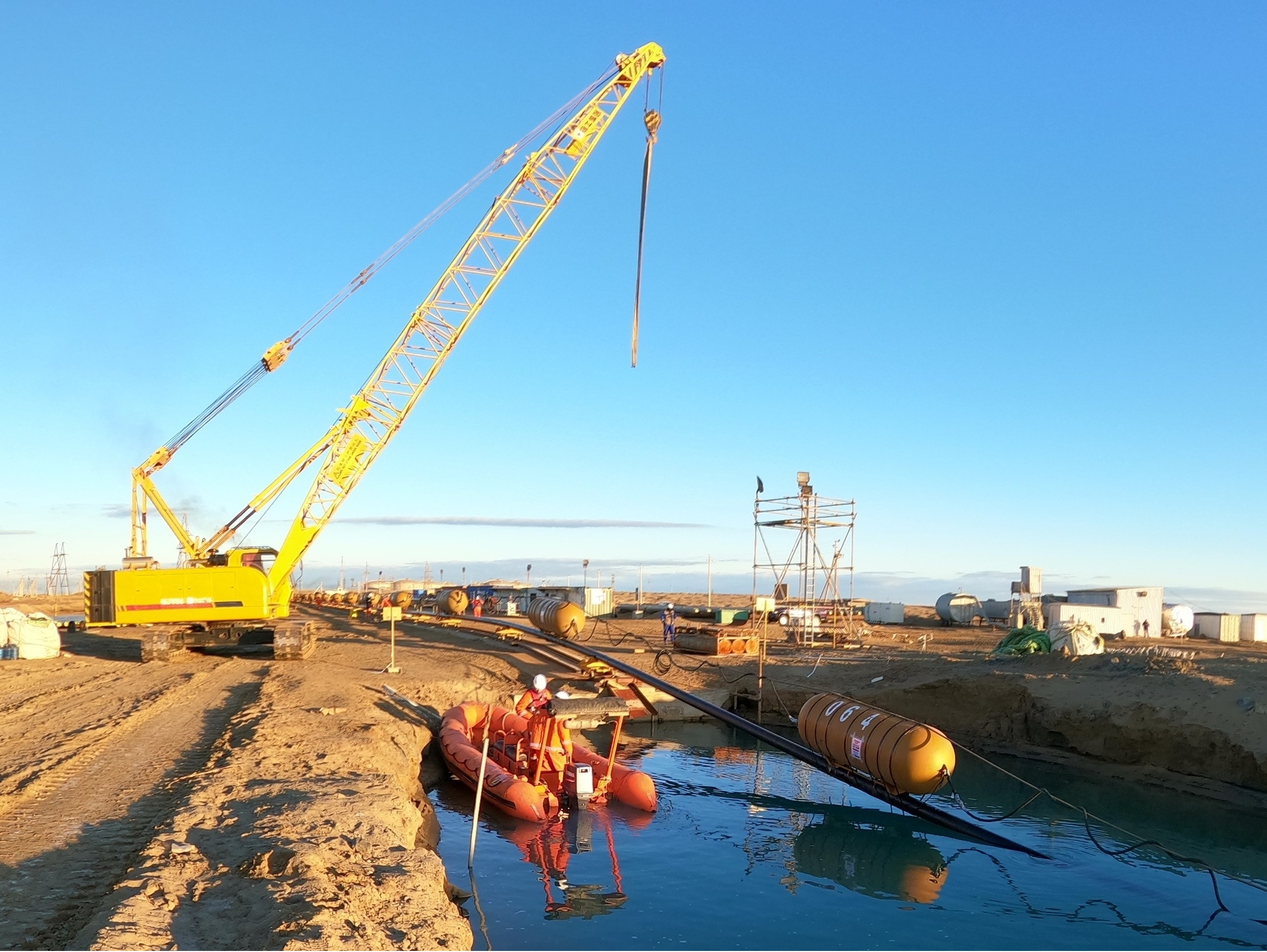

Each WI wellhead towers is connected to LAM-28 platform via subsea pipelines. The approximate distance of pipelines are as follows:



From

To

Pipeline Distance (km)

LAM-28

WI Tower-1

1.8

LAM-28

WI Tower-2

2.8

LAM-28

WI Tower-3

1.8

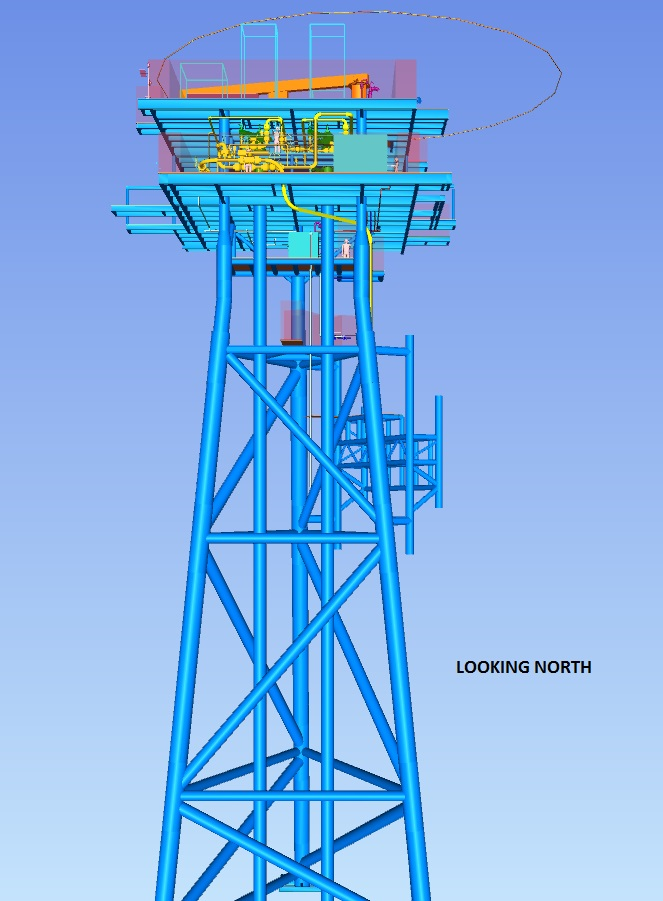

  • Design criteria: Fixed Offshore Towers, API RP 2A-WSD
  • Designed for 25 years operation
  • Unmanned platform

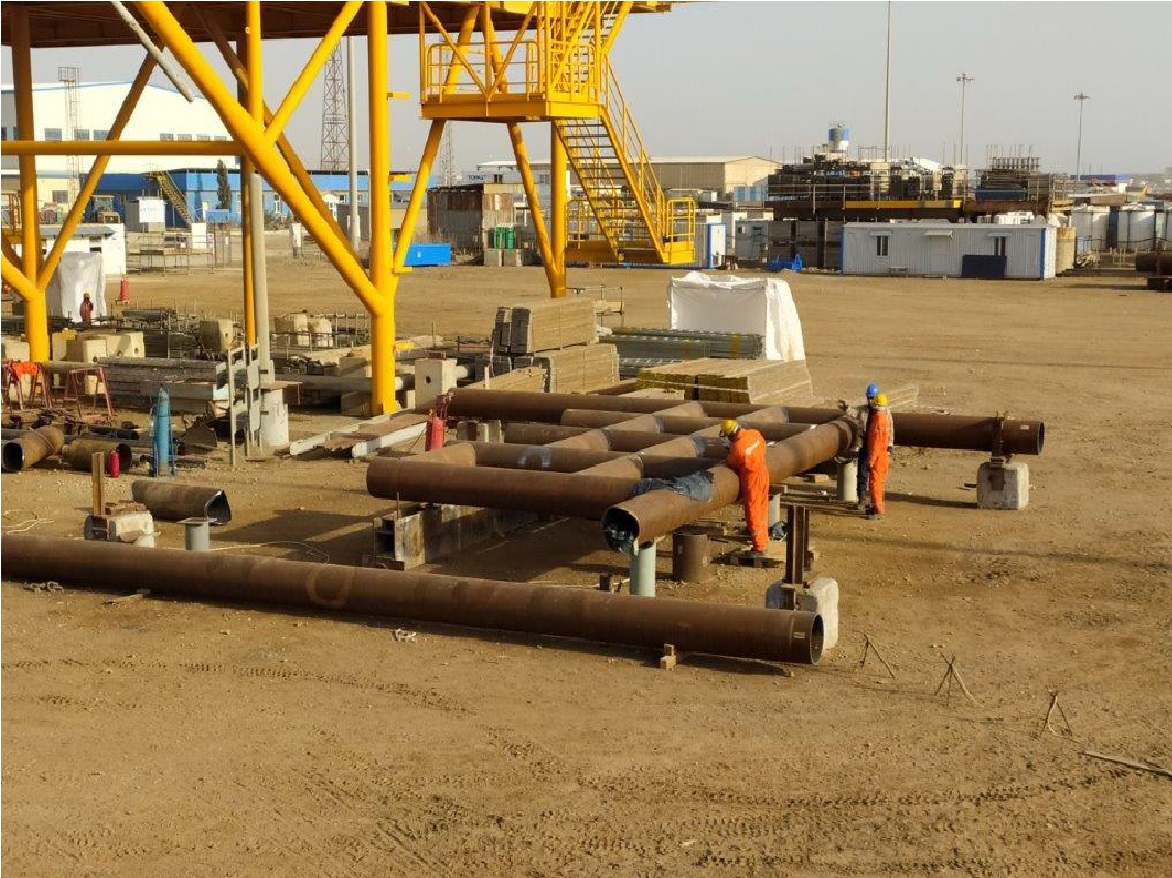

  • Tripod jacket with one (1) boat landing

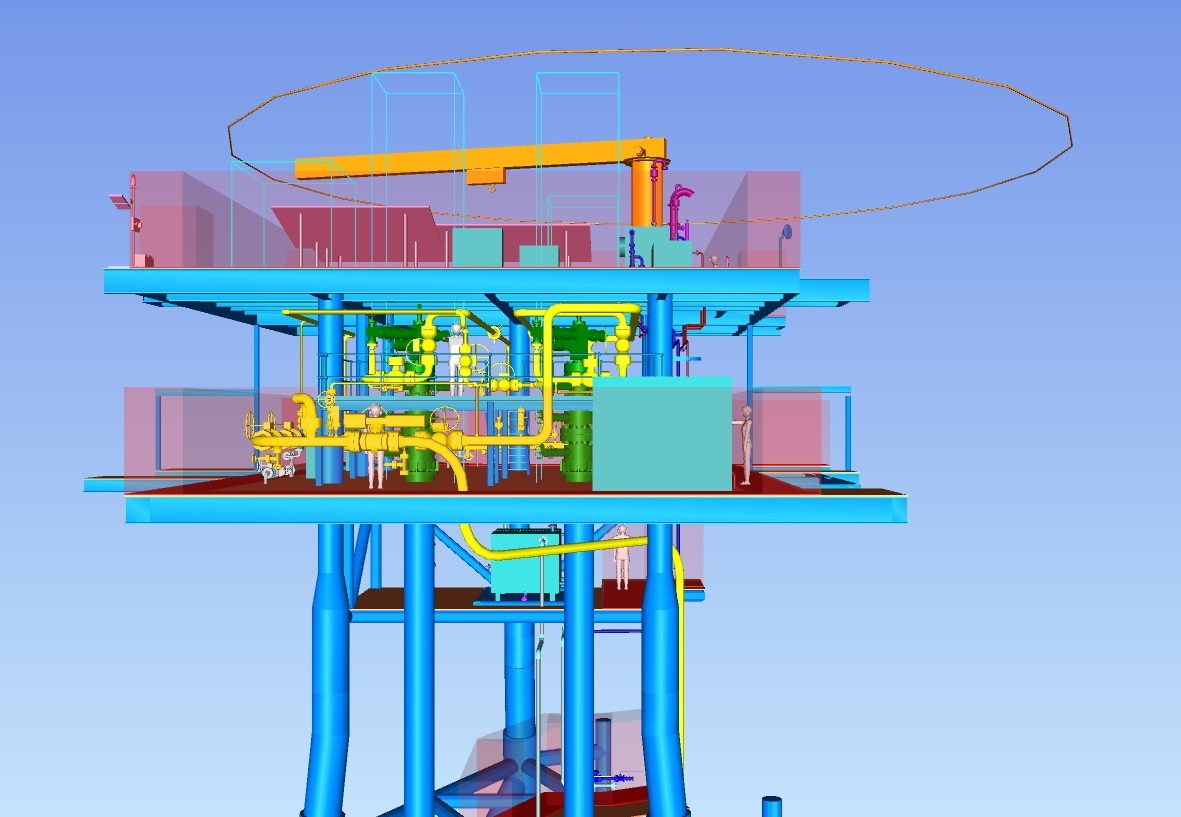

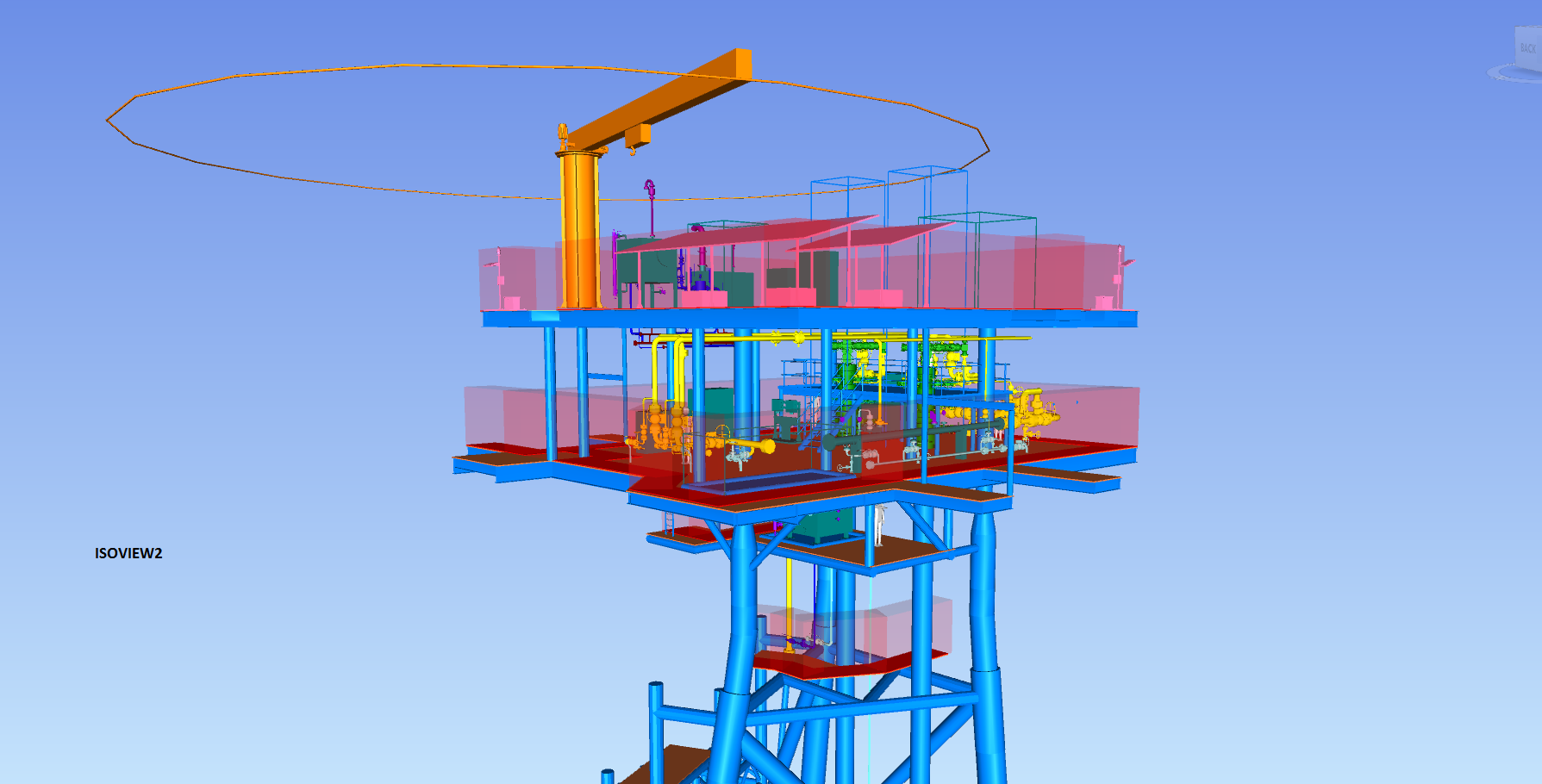

  • Double deck (Main Deck & Cellar Deck)
  • Deck Size:
         15500mm x 13000m (Main Deck)
         12500mm x 11500mm (Cellar Deck)
  • Total Deck Area: 345.3m2
  • Estimated platform dry weight:
         500MT (Jacket)
         255MT (192MT Topside + 63MT Equipment)
