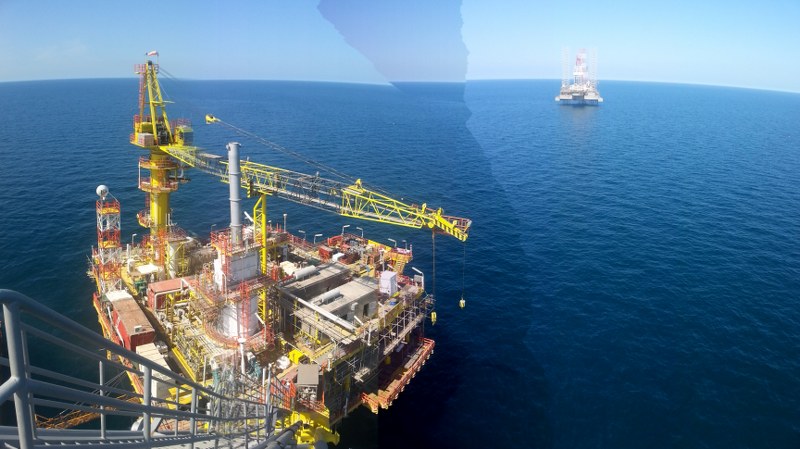

EPCC of Central Diyarbekir Oil Development Project

  • CLIENTPetronas Carigali (Turkmenistan) Sdn. Bhd.
  • LOCATION Turkmenistan
  • STATUS Completed Projects
  • SCOPE OF WORKS
  • Engineering, Procurement, Construction and Hook up and Commissioning of Central Diyarbekir Jacket, Drilling Platform and Topside (CDDP-A) with minimum process facilities.

PROJECT DETAILS

Main Products

Piles

Diameter: 2.000 mm – thickness: 50.0 mm WT – 1.073 tons

Grouting

55 tons

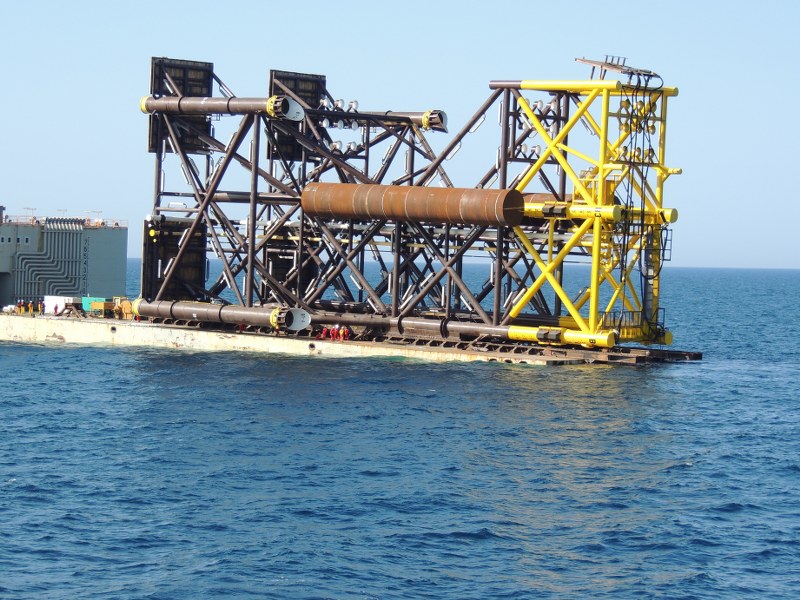

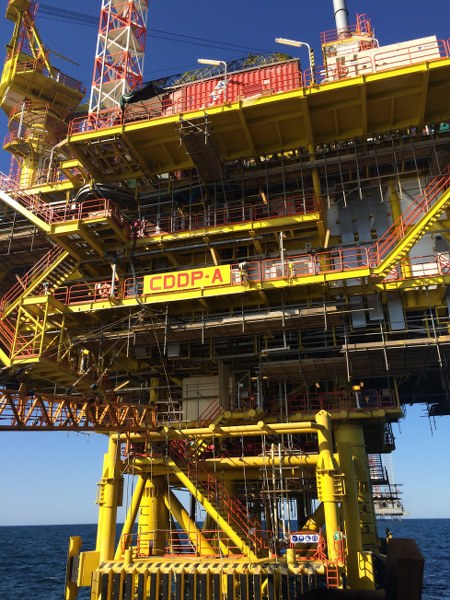

Jacket

1 nos 4 legged jacket with 4 skirt leg (total 2.320 tons)

Appurtenances (Anodes, Boatlanding,Walkways etc)

1 no of Boat Landing – 80 tons, 355 no’s Anodes – 145 tons

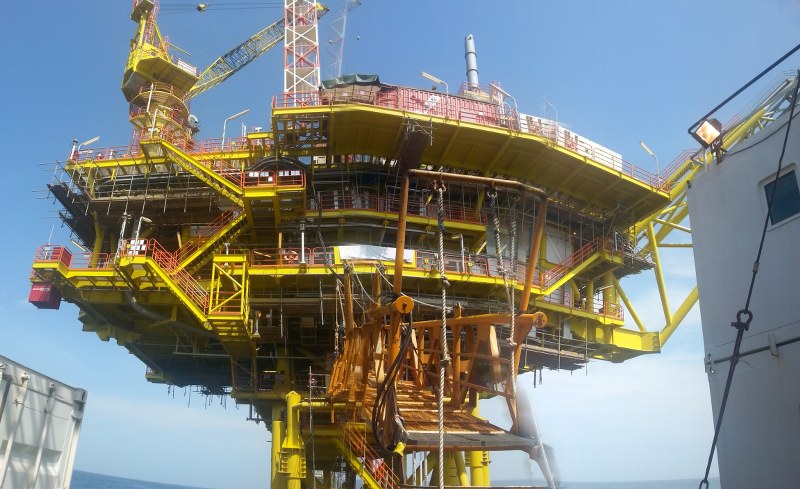

Topside

Dry weight= 2.627 tons, Operating weight = 4.692 tons

Piping

22.545 dia-inch, 2.323 spool

Mechanical (Equipment) Erection

40 no’s of mechanical equipment

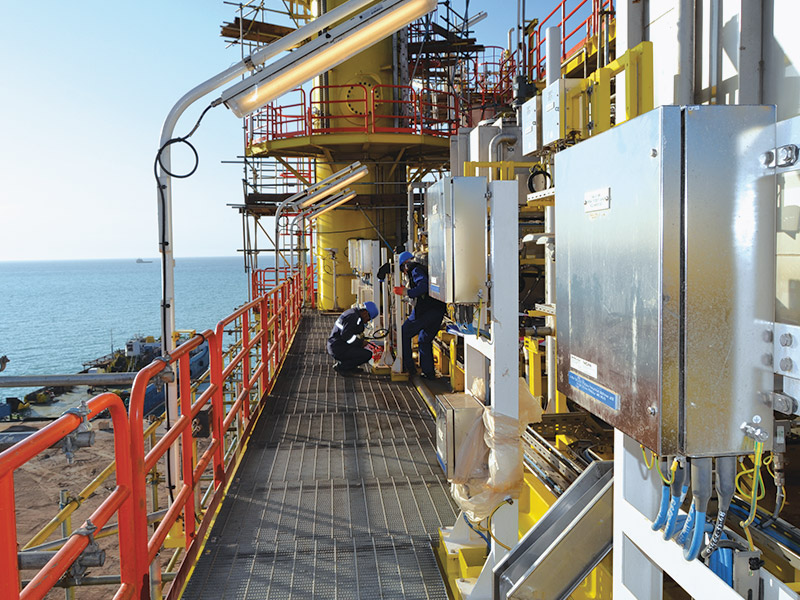

Electrical Installation

600 m cable ladder/tray, 40 km cable, 1.980 glanding, 6.392 termination and other electrical equipment & field electrical devices

Instrument Installation

700 m cable ladder/tray, 22 km cable, 2.368 glanding, 16.088 termination, 486 loop test and other instrument equipment & instrument devices.

Total tonnage of platform

8.365 tons (operating)

Deck Elevations and Sizes





Sub-lower Deck – 18.00 x 20.00 m El: + 9.000



Lower Deck – 27.00 x 40.00 m El: + 14.000



Instrument Deck – 12.00 x 32.00 m El: + 17.800



Upper Deck – 34.00 x 37.00 m El: + 21.800
